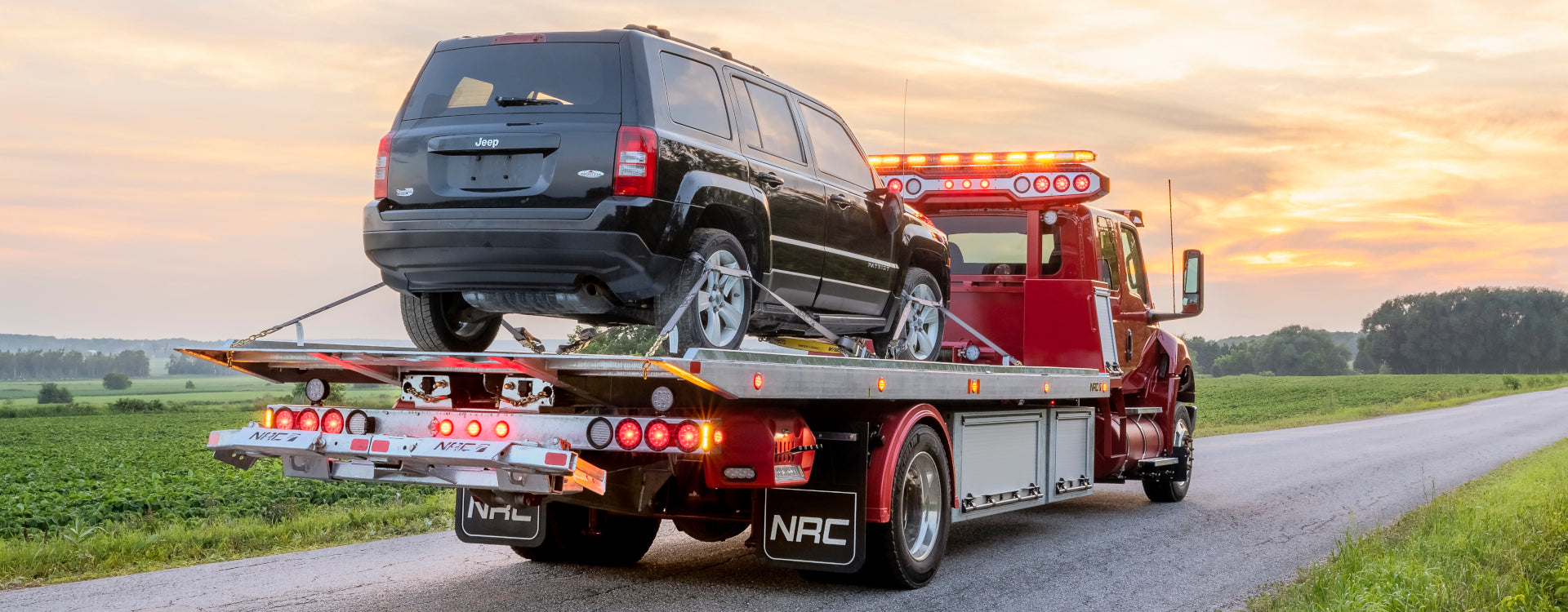

20TB

Nominal deck rating : 20,000 lbs

Tow bar lift rating: 8,000 lbs@0'' / 3,000 lbs@48''

Standard winch: 8,000 lbs

Tow rating: 15,000 lbs

Deck length: 20'-30'

Deck width: 102"

Seamless deck - 3/16" checker plate

3" high X 12" spacing roll formed 60ksi steel deck cross-members

Operating pressure: 2,600 PSI

Fixed headboard with chain rack and steps

5 marker lights per side

3 chain slots on each side

Hydraulic oil tank with filter - 12 GAL

Winch embedded in chain rack

Dual controls - lever type

Pressure gauge

Independent hydraulic tow bar

Wheel lift system

Lighting compliant with Federal Standard #108

Deck lights

Hydraulic gear pump, direct mount - 17 GPM

Deck width: 98''

10,000 lbs/12,000 lbs/15,000 lbs planetary main winch

8,000 lbs/10,000l bs/12,000 lbs planetary auxiliary winch

3/16'' 44W smooth steel deck

3/16'' high tensile smooth steel deck

Apitong wood decking (24'-30')

3" high X 9" spacing roll formed 60ksi steel deck cross-members

2" high X 9" spacing low profile roll formed 60ksi steel deck cross-members

Fixed/Removable deck rails

2 work lights on top of the rear bumper

Extra chain slots

Trailer hitch & pintle hook adaptor

Galvanized subframe

2/4/6/10-Button wireless remote control

Stabilizer grip

Stabilizer grip "side pull"

Recovery roller guide

Recovery sheave head

72'' toolbox w/ roll-up door

72'' chain basket

Compact chain basket

Custom deck paint

Hot-dipped galvanized deck

NRC Safe Loader(TM) automatic wheel-lift system

1 "V" chain 5/16" x 36" with "J" hooks

2 chains 5/16" x 96" with "J" hooks

Wheel lift tie-down kit

2 chains 5/16" with Grab & RTJ Hooks & 2 binders

2 safety chains in sub-frame

Cab to axle (single): 144''-244''

Cab to last axle (tandem): 196''-274''

Minimum RBM for 21'-25': 1,250,000 lbs*in / rail

Minimum RBM for>25': 1,925,000 lbs*in /rail

Minimum RBM for tandem: 2,250,000 lbs*in / rail
